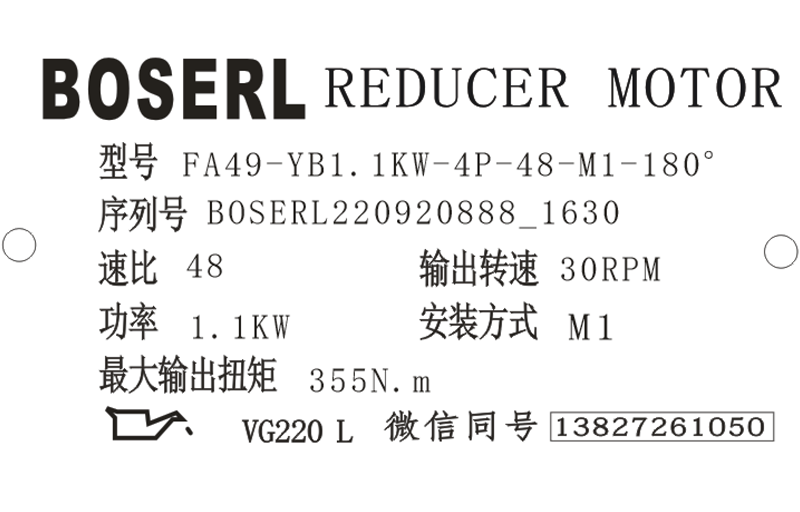

FA49減速器銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的FA49減速器選型樣本。

FA49-YB1.1KW-4P-48-M1-180°

FA：系列代號

49：減速機規格代號

YB：電機

1.1KW：電機功率

4P：電機級數

48：減速機傳動比

M1：減速機安裝位置

180°：接線盒位置

FA49減速器逆止器安裝：

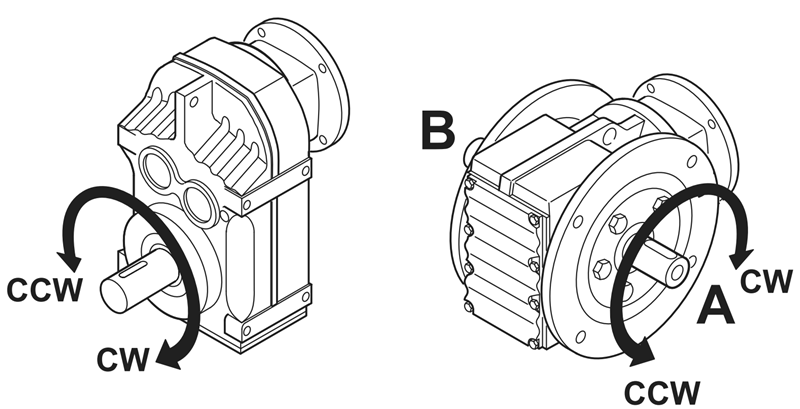

轉向要根據輸出軸（LSS）來確定；順時針旋轉（CW）；逆時針旋轉（CCW）；應在箱體上標識出許可轉向。平行軸斜齒輪減速機

逆止器用來避免逆向轉動；如此便可確保運行過程中的定向轉動。注意：逆向運轉可能導致逆止器損壞；電機不允許逆向轉動；注意供電是否正確，以確保電機定向轉動；可以使電機輸出一半的額定扭矩來檢查逆止器方向。

FA49減速器帶逆止器的輸入端裝置AD../RS：安裝或運送前檢查驅動裝置的旋轉方向是否正確，若轉向錯誤請與BOSERL公司客戶服務部聯系。在運行過程中，逆止器不需要特別維護或其他的維護措施。分體電機減速機

如果低于最小超越轉速，則逆止器將會發生摩擦而產生高溫，可能造成財產損失；在額外工作狀態下，不得低于最小超越轉速；在啟動或制動階段可以低于最小超越轉速。根據各自的尺寸規格，逆止器的最小超越轉速如下表：

FA49減速器潤滑油檢查：

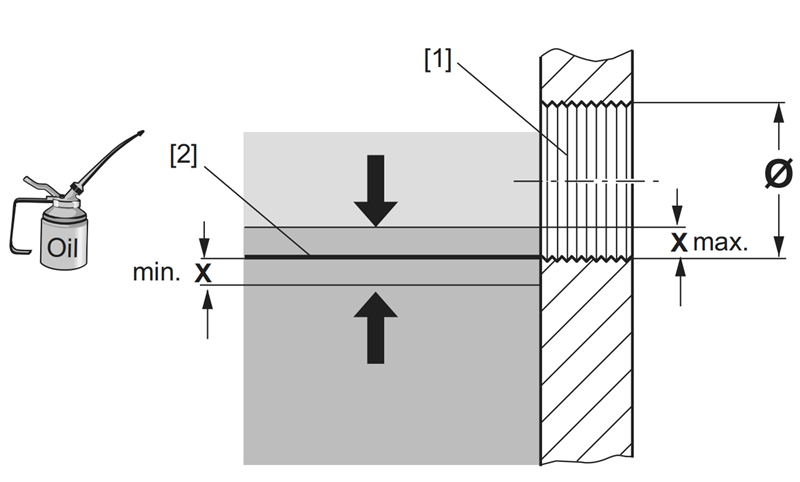

將一個容器置于油位檢查螺栓的下方；慢慢旋出油位檢查螺栓。由于最大許可注油高度超過了油位孔的下緣，因此在旋出螺栓時可能有少量油漏出；據下圖及相關表格檢查油位。

若油位過低則操作如下：旋入透氣螺栓；將同類潤滑油注入透氣孔直至油位檢查孔的下緣；重新旋入透氣螺塞。

重新旋入油位檢查螺栓，通過放油螺栓檢查油質。齒輪減速電機

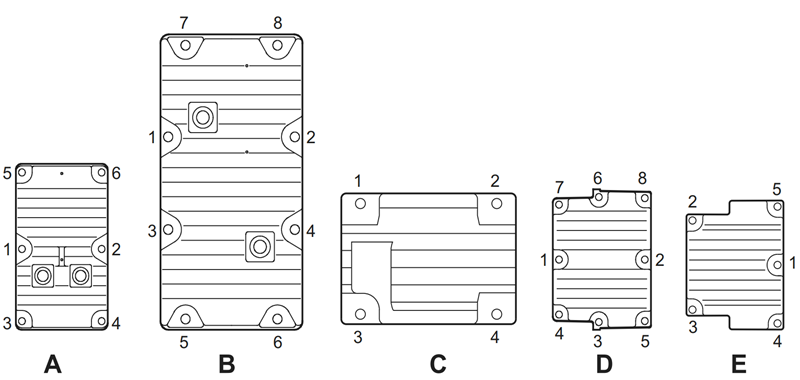

重新裝上安裝蓋，根據下表中的標稱擰緊扭矩按照?qǐng)D中標明的順序由內向外依次擰緊蓋上的螺栓；重復這一步驟多次，直至螺栓完全擰緊；只能采用氣動扳手或力矩扳手，避免安裝時對蓋板產生破壞，避免用力過猛或使用強沖擊的工具。

FA49減速器型號：

XDFA47-Y0.12KW，XDFA47-Y0.18KW，XDFA47-Y0.25KW，XDFA47-Y0.37KW，XDFA47-Y0.55KW，XDFA47-Y0.75KW，XDFA47-Y1.1KW，XDFA47-Y1.5KW，XDFA47-Y100M4，XDFA47-Y2.2KW，XDFA47-Y3KW，XDFA47-Y63M4，XDFA47-Y71M4，XDFA47-Y80M4，XDFA47-Y90M4，XDFA47-YB100M4，XDFA47-YB63M4，XDFA47-YB71M4，XDFA47-YB80M4，XDFA47-YB90M4，XDFA47-YDP100M4，XDFA47-YDP63M4，XDFA47-YDP71M4，XDFA47-YDP80M4，XDFA47-YDP90M4，XDFA47-YE100M4，XDFA47-YE63M4，XDFA47-YE71M4，XDFA47-YE80M4，XDFA47-YE90M4，XDFA47-YEJ100M4，XDFA47-YEJ63M4，XDFA47-YEJ71M4，XDFA47-YEJ80M4，XDFA47-YEJ90M4，XDFA47-YEJB100M4，XDFA47-YEJB63M4，XDFA47-YEJB71M4，XDFA47-YEJB80M4，XDFA47-YEJB90M4，XDFA47-YP100M4，XDFA47-YP63M4，XDFA47-YP71M4，XDFA47-YP80M4，XDFA47-YP90M4，XDFA47-YPB100M4，XDFA47-YPB63M4，XDFA47-YPB71M4，XDFA47-YPB80M4，XDFA47-YPB90M4，XDFA47-YPE100M4，XDFA47-YPE63M4，XDFA47-YPE71M4，XDFA47-YPE80M4，XDFA47-YPE90M4，XDFA47-YS100M4，XDFA47-YS63M4，XDFA47-YS71M4，XDFA47-YS80M4，XDFA47-YS90M4，XDFA47-YVB100M4，XDFA47-YVB63M4，XDFA47-YVB71M4，XDFA47-YVB80M4，XDFA47-YVB90M4，XDFA47-YVP100M4，XDFA47-YVP63M4，XDFA47-YVP71M4，XDFA47-YVP80M4，XDFA47-YVP90M4，XDFA47-YVPEJ100M4，XDFA47-YVPEJ63M4，XDFA47-YVPEJ71M4，XDFA47-YVPEJ80M4，XDFA47-YVPEJ90M4，YQFA47-Y0.12KW，YQFA47-Y0.18KW，YQFA47-Y0.25KW，YQFA47-Y0.37KW，YQFA47-Y0.55KW，YQFA47-Y0.75KW，YQFA47-Y1.1KW，YQFA47-Y1.5KW，YQFA47-Y100M4，YQFA47-Y2.2KW，YQFA47-Y3KW，YQFA47-Y63M4，YQFA47-Y71M4，YQFA47-Y80M4，YQFA47-Y90M4，YQFA47-YB100M4，YQFA47-YB63M4，YQFA47-YB71M4，YQFA47-YB80M4，YQFA47-YB90M4，YQFA47-YDP100M4，YQFA47-YDP63M4，YQFA47-YDP71M4，YQFA47-YDP80M4，YQFA47-YDP90M4，YQFA47-YE100M4，YQFA47-YE63M4，YQFA47-YE71M4，YQFA47-YE80M4，YQFA47-YE90M4，YQFA47-YEJ100M4，YQFA47-YEJ63M4，YQFA47-YEJ71M4，YQFA47-YEJ80M4，YQFA47-YEJ90M4，YQFA47-YEJB100M4，YQFA47-YEJB63M4，YQFA47-YEJB71M4，YQFA47-YEJB80M4，YQFA47-YEJB90M4，YQFA47-YP100M4，YQFA47-YP63M4，YQFA47-YP71M4，YQFA47-YP80M4，YQFA47-YP90M4，YQFA47-YPB100M4，YQFA47-YPB63M4，YQFA47-YPB71M4，YQFA47-YPB80M4，YQFA47-YPB90M4，YQFA47-YPE100M4，YQFA47-YPE63M4，YQFA47-YPE71M4，YQFA47-YPE80M4，YQFA47-YPE90M4，YQFA47-YS100M4，YQFA47-YS63M4，YQFA47-YS71M4，YQFA47-YS80M4，YQFA47-YS90M4，YQFA47-YVB100M4，YQFA47-YVB63M4，YQFA47-YVB71M4，YQFA47-YVB80M4，YQFA47-YVB90M4，YQFA47-YVP100M4，YQFA47-YVP63M4，YQFA47-YVP71M4，YQFA47-YVP80M4，YQFA47-YVP90M4，YQFA47-YVPEJ100M4，YQFA47-YVPEJ63M4，YQFA47-YVPEJ71M4，YQFA47-YVPEJ80M4，YQFA47-YVPEJ90M4，F(xiàn)WA47-Y0.12KW，F(xiàn)WA47-Y0.18KW，F(xiàn)WA47-Y0.25KW，F(xiàn)WA47-Y0.37KW，F(xiàn)WA47-Y0.55KW，F(xiàn)WA47-Y0.75KW，F(xiàn)WA47-Y1.1KW，F(xiàn)WA47-Y1.5KW，F(xiàn)WA47-Y100M4，F(xiàn)WA47-Y2.2KW，F(xiàn)WA47-Y3KW，F(xiàn)WA47-Y63M4，F(xiàn)WA47-Y71M4，F(xiàn)WA47-Y80M4，F(xiàn)WA47-Y90M4，F(xiàn)WA47-YB100M4，F(xiàn)WA47-YB63M4，F(xiàn)WA47-YB71M4，F(xiàn)WA47-YB80M4，F(xiàn)WA47-YB90M4，F(xiàn)WA47-YDP100M4，F(xiàn)WA47-YDP63M4，F(xiàn)WA47-YDP71M4，F(xiàn)WA47-YDP80M4，F(xiàn)WA47-YDP90M4，F(xiàn)WA47-YE100M4，F(xiàn)WA47-YE63M4，F(xiàn)WA47-YE71M4，F(xiàn)WA47-YE80M4，F(xiàn)WA47-YE90M4，F(xiàn)WA47-YEJ100M4，F(xiàn)WA47-YEJ63M4，F(xiàn)WA47-YEJ71M4，F(xiàn)WA47-YEJ80M4，F(xiàn)WA47-YEJ90M4，F(xiàn)WA47-YEJB100M4，F(xiàn)WA47-YEJB63M4，F(xiàn)WA47-YEJB71M4，F(xiàn)WA47-YEJB80M4，F(xiàn)WA47-YEJB90M4，F(xiàn)WA47-YP100M4，F(xiàn)WA47-YP63M4，F(xiàn)WA47-YP71M4，F(xiàn)WA47-YP80M4，F(xiàn)WA47-YP90M4，F(xiàn)WA47-YPB100M4，F(xiàn)WA47-YPB63M4，F(xiàn)WA47-YPB71M4，F(xiàn)WA47-YPB80M4，F(xiàn)WA47-YPB90M4，F(xiàn)WA47-YPE100M4，F(xiàn)WA47-YPE63M4，F(xiàn)WA47-YPE71M4，F(xiàn)WA47-YPE80M4，F(xiàn)WA47-YPE90M4，F(xiàn)WA47-YS100M4，F(xiàn)WA47-YS63M4，F(xiàn)WA47-YS71M4，F(xiàn)WA47-YS80M4，F(xiàn)WA47-YS90M4，F(xiàn)WA47-YVB100M4，F(xiàn)WA47-YVB63M4，F(xiàn)WA47-YVB71M4，F(xiàn)WA47-YVB80M4，F(xiàn)WA47-YVB90M4，F(xiàn)WA47-YVP100M4，F(xiàn)WA47-YVP63M4，F(xiàn)WA47-YVP71M4，F(xiàn)WA47-YVP80M4，F(xiàn)WA47-YVP90M4，F(xiàn)WA47-YVPEJ100M4，F(xiàn)WA47-YVPEJ63M4，F(xiàn)WA47-YVPEJ71M4，F(xiàn)WA47-YVPEJ80M4，F(xiàn)WA47-YVPEJ90M4，JCFA47-Y0.12KW，JCFA47-Y0.18KW，JCFA47-Y0.25KW，JCFA47-Y0.37KW，JCFA47-Y0.55KW，JCFA47-Y0.75KW，JCFA47-Y1.1KW，JCFA47-Y1.5KW，JCFA47-Y100M4，JCFA47-Y2.2KW，JCFA47-Y3KW，JCFA47-Y63M4，JCFA47-Y71M4，JCFA47-Y80M4，JCFA47-Y90M4，JCFA47-YB100M4，JCFA47-YB63M4，JCFA47-YB71M4，JCFA47-YB80M4，JCFA47-YB90M4，JCFA47-YDP100M4，JCFA47-YDP63M4，JCFA47-YDP71M4，JCFA47-YDP80M4，JCFA47-YDP90M4，JCFA47-YE100M4，JCFA47-YE63M4，JCFA47-YE71M4，JCFA47-YE80M4，JCFA47-YE90M4，JCFA47-YEJ100M4，JCFA47-YEJ63M4，JCFA47-YEJ71M4，JCFA47-YEJ80M4，JCFA47-YEJ90M4，JCFA47-YEJB100M4，JCFA47-YEJB63M4，JCFA47-YEJB71M4，JCFA47-YEJB80M4，JCFA47-YEJB90M4，JCFA47-YP100M4，JCFA47-YP63M4，JCFA47-YP71M4，JCFA47-YP80M4，JCFA47-YP90M4，JCFA47-YPB100M4，JCFA47-YPB63M4，JCFA47-YPB71M4，JCFA47-YPB80M4，JCFA47-YPB90M4，JCFA47-YPE100M4，JCFA47-YPE63M4，JCFA47-YPE71M4，JCFA47-YPE80M4，JCFA47-YPE90M4，JCFA47-YS100M4，JCFA47-YS63M4，JCFA47-YS71M4，JCFA47-YS80M4，JCFA47-YS90M4，JCFA47-YVB100M4，JCFA47-YVB63M4，JCFA47-YVB71M4，JCFA47-YVB80M4，JCFA47-YVB90M4，JCFA47-YVP100M4，JCFA47-YVP63M4，JCFA47-YVP71M4，JCFA47-YVP80M4，JCFA47-YVP90M4，JCFA47-YVPEJ100M4，JCFA47-YVPEJ63M4，JCFA47-YVPEJ71M4，JCFA47-YVPEJ80M4，JCFA47-YVPEJ90M4，F(xiàn)A49-Y0.12KW，F(xiàn)A49-Y0.18KW，F(xiàn)A49-Y0.25KW，F(xiàn)A49-Y0.37KW，F(xiàn)A49-Y0.55KW，F(xiàn)A49-Y0.75KW，F(xiàn)A49-Y1.1KW，F(xiàn)A49-Y1.5KW，F(xiàn)A49-Y100M4，F(xiàn)A49-Y2.2KW，F(xiàn)A49-Y3KW，F(xiàn)A49-Y63M4，F(xiàn)A49-Y71M4，F(xiàn)A49-Y80M4，F(xiàn)A49-Y90M4，F(xiàn)A49-YB100M4，F(xiàn)A49-YB63M4，F(xiàn)A49-YB71M4，F(xiàn)A49-YB80M4，F(xiàn)A49-YB90M4，F(xiàn)A49-YDP100M4，F(xiàn)A49-YDP63M4，F(xiàn)A49-YDP71M4，F(xiàn)A49-YDP80M4，F(xiàn)A49-YDP90M4，F(xiàn)A49-YE100M4，F(xiàn)A49-YE63M4，F(xiàn)A49-YE71M4，F(xiàn)A49-YE80M4，F(xiàn)A49-YE90M4，F(xiàn)A49-YEJ100M4，F(xiàn)A49-YEJ63M4，F(xiàn)A49-YEJ71M4，F(xiàn)A49-YEJ80M4，F(xiàn)A49-YEJ90M4，F(xiàn)A49-YEJB100M4，F(xiàn)A49-YEJB63M4，F(xiàn)A49-YEJB71M4，F(xiàn)A49-YEJB80M4，F(xiàn)A49-YEJB90M4，F(xiàn)A49-YP100M4，F(xiàn)A49-YP63M4，F(xiàn)A49-YP71M4，F(xiàn)A49-YP80M4，F(xiàn)A49-YP90M4，F(xiàn)A49-YPB100M4，F(xiàn)A49-YPB63M4，F(xiàn)A49-YPB71M4，F(xiàn)A49-YPB80M4，F(xiàn)A49-YPB90M4，F(xiàn)A49-YPE100M4，F(xiàn)A49-YPE63M4，F(xiàn)A49-YPE71M4，F(xiàn)A49-YPE80M4，F(xiàn)A49-YPE90M4，F(xiàn)A49-YS100M4，F(xiàn)A49-YS63M4，F(xiàn)A49-YS71M4，F(xiàn)A49-YS80M4，F(xiàn)A49-YS90M4，F(xiàn)A49-YVB100M4，F(xiàn)A49-YVB63M4，F(xiàn)A49-YVB71M4，F(xiàn)A49-YVB80M4，F(xiàn)A49-YVB90M4，F(xiàn)A49-YVP100M4，F(xiàn)A49-YVP63M4，F(xiàn)A49-YVP71M4，F(xiàn)A49-YVP80M4，F(xiàn)A49-YVP90M4，F(xiàn)A49-YVPEJ100M4，F(xiàn)A49-YVPEJ63M4，F(xiàn)A49-YVPEJ71M4，F(xiàn)A49-YVPEJ80M4，F(xiàn)A49-YVPEJ90M4，F(xiàn)A47SF80，F(xiàn)A47SF90，F(xiàn)A47SF100，F(xiàn)A47SF112，F(xiàn)A47SF115，F(xiàn)A47SF140，F(xiàn)A47SF160，F(xiàn)A47SF190。

FA49減速器生產工廠展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.clajj.cn/product/list-faxiliejiansuji-cn.html

推薦類似型號：F49減速機
