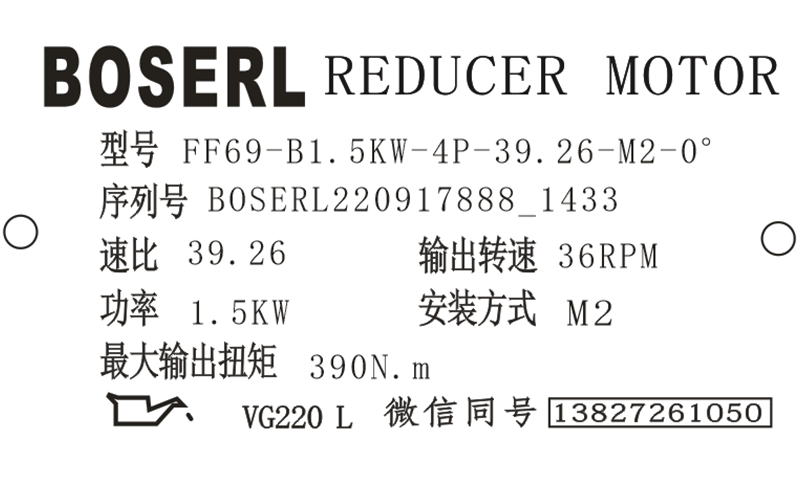

FF69減速器銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的FF69減速器選型樣本。

FF69-B1.5KW-4P-39.26-M2-0°

FF：系列代號

69：減速機規格代號

B：電機

1.5KW：電機功率

4P：電機級數

39.26：減速機傳動比

M2：減速機安裝位置

0°：接線盒位置

FF69減速器透氣閥開啟操作教程：

安裝時檢查透氣閥是否開啟，若透氣閥未開啟，則必須在啟動FF69減速器前拆下透氣閥的運輸保險！平行軸斜齒輪減速機

第一步帶運輸橡膠圈的透氣閥；

第二步拆下運輸橡膠圈；

第三步已經開啟的透氣閥。

FF69減速器安裝操作的正確方法：

FF69減速器的透氣：安裝位置為M1、M3、M5以及M6中的R19、R29和F29無需透氣裝置。正常情況BOSERL公司都會在供貨時根據訂購的安裝位置將透氣閥裝好并開啟；例外情況：對于下列FF69減速器，BOSERL公司供貨時將在設置的透氣孔上安裝密封螺栓。條件允許的情況下，采用傳動式安裝位置，傾斜位置安裝的FF69減速器，啟動FF69減速器前請以隨機提供的透氣閥換下位于最高位置的密封螺栓。齒輪減速電機

FF69減速器噴漆：噴漆或補漆時可能對透氣閥和油封造成損傷，要求噴漆前對透氣閥和油封的密封唇進行細致封堵；噴漆后撕去封堵粘條。

FF69減速器實心軸輸出與輸出部件的裝配：不當裝配可能對軸承、箱體或軸造成損傷，可能造成財產損失！只能采用裝配夾具安裝輸入和輸出部件。利用軸端面上現有的螺紋對中孔進行定位裝配；嚴禁用錘擊方式將皮帶輪、聯軸器，小齒輪等裝入軸端部；安裝皮帶輪時皮帶的正確張力要根據制造商的規定；裝配的傳動件應當進行動平衡，并且不允許出現超出許可的徑向力或者軸向力（許可值參見“本頁面附件下載中的FF69減速器選型樣本”）。

FF69減速器潮濕或露天場地的安裝：若要在潮濕場地或露天情況下使用驅動設備，則設備要做防腐設計，供貨時噴涂相應的表面防護漆。對可能出現的油漆剝落（如透氣閥或吊耳出），進行修補。將電機安裝到聯軸器AM、AD時，法蘭表面要采用合適的密封膠，例如Loctitlre518進行密封。剎車電機減速機

FF69減速器型號：

XDFF67-Y0.18KW，XDFF67-Y0.25KW，XDFF67-Y0.37KW，XDFF67-Y0.55KW，XDFF67-Y0.75KW，XDFF67-Y1.1KW，XDFF67-Y1.5KW，XDFF67-Y100M4，XDFF67-Y112M4，XDFF67-Y132M4，XDFF67-Y2.2KW，XDFF67-Y3KW，XDFF67-Y4KW，XDFF67-Y5.5KW，XDFF67-Y63M4，XDFF67-Y71M4，XDFF67-Y80M4，XDFF67-Y90M4，XDFF67-YB100M4，XDFF67-YB112M4，XDFF67-YB132M4，XDFF67-YB63M4，XDFF67-YB71M4，XDFF67-YB80M4，XDFF67-YB90M4，XDFF67-YDP100M4，XDFF67-YDP112M4，XDFF67-YDP132M4，XDFF67-YDP63M4，XDFF67-YDP71M4，XDFF67-YDP80M4，XDFF67-YDP90M4，XDFF67-YE100M4，XDFF67-YE112M4，XDFF67-YE132M4，XDFF67-YE63M4，XDFF67-YE71M4，XDFF67-YE80M4，XDFF67-YE90M4，XDFF67-YEJ100M4，XDFF67-YEJ112M4，XDFF67-YEJ132M4，XDFF67-YEJ63M4，XDFF67-YEJ71M4，XDFF67-YEJ80M4，XDFF67-YEJ90M4，XDFF67-YEJB100M4，XDFF67-YEJB112M4，XDFF67-YEJB132M4，XDFF67-YEJB63M4，XDFF67-YEJB71M4，XDFF67-YEJB80M4，XDFF67-YEJB90M4，XDFF67-YP100M4，XDFF67-YP112M4，XDFF67-YP132M4，XDFF67-YP63M4，XDFF67-YP71M4，XDFF67-YP80M4，XDFF67-YP90M4，XDFF67-YPB100M4，XDFF67-YPB112M4，XDFF67-YPB132M4，XDFF67-YPB63M4，XDFF67-YPB71M4，XDFF67-YPB80M4，XDFF67-YPB90M4，XDFF67-YPE100M4，XDFF67-YPE112M4，XDFF67-YPE132M4，XDFF67-YPE63M4，XDFF67-YPE71M4，XDFF67-YPE80M4，XDFF67-YPE90M4，XDFF67-YS100M4，XDFF67-YS112M4，XDFF67-YS132M4，XDFF67-YS63M4，XDFF67-YS71M4，XDFF67-YS80M4，XDFF67-YS90M4，XDFF67-YVB100M4，XDFF67-YVB112M4，XDFF67-YVB132M4，XDFF67-YVB63M4，XDFF67-YVB71M4，XDFF67-YVB80M4，XDFF67-YVB90M4，XDFF67-YVP100M4，XDFF67-YVP112M4，XDFF67-YVP132M4，XDFF67-YVP63M4，XDFF67-YVP71M4，XDFF67-YVP80M4，XDFF67-YVP90M4，XDFF67-YVPEJ100M4，XDFF67-YVPEJ112M4，XDFF67-YVPEJ132M4，XDFF67-YVPEJ63M4，XDFF67-YVPEJ71M4，XDFF67-YVPEJ80M4，XDFF67-YVPEJ90M4，F(xiàn)WF67-Y0.18KW，F(xiàn)WF67-Y0.25KW，F(xiàn)WF67-Y0.37KW，F(xiàn)WF67-Y0.55KW，F(xiàn)WF67-Y0.75KW，F(xiàn)WF67-Y1.1KW，F(xiàn)WF67-Y1.5KW，F(xiàn)WF67-Y100M4，F(xiàn)WF67-Y112M4，F(xiàn)WF67-Y132M4，F(xiàn)WF67-Y2.2KW，F(xiàn)WF67-Y3KW，F(xiàn)WF67-Y4KW，F(xiàn)WF67-Y5.5KW，F(xiàn)WF67-Y63M4，F(xiàn)WF67-Y71M4，F(xiàn)WF67-Y80M4，F(xiàn)WF67-Y90M4，F(xiàn)WF67-YB100M4，F(xiàn)WF67-YB112M4，F(xiàn)WF67-YB132M4，F(xiàn)WF67-YB63M4，F(xiàn)WF67-YB71M4，F(xiàn)WF67-YB80M4，F(xiàn)WF67-YB90M4，F(xiàn)WF67-YDP100M4，F(xiàn)WF67-YDP112M4，F(xiàn)WF67-YDP132M4，F(xiàn)WF67-YDP63M4，F(xiàn)WF67-YDP71M4，F(xiàn)WF67-YDP80M4，F(xiàn)WF67-YDP90M4，F(xiàn)WF67-YE100M4，F(xiàn)WF67-YE112M4，F(xiàn)WF67-YE132M4，F(xiàn)WF67-YE63M4，F(xiàn)WF67-YE71M4，F(xiàn)WF67-YE80M4，F(xiàn)WF67-YE90M4，F(xiàn)WF67-YEJ100M4，F(xiàn)WF67-YEJ112M4，F(xiàn)WF67-YEJ132M4，F(xiàn)WF67-YEJ63M4，F(xiàn)WF67-YEJ71M4，F(xiàn)WF67-YEJ80M4，F(xiàn)WF67-YEJ90M4，F(xiàn)WF67-YEJB100M4，F(xiàn)WF67-YEJB112M4，F(xiàn)WF67-YEJB132M4，F(xiàn)WF67-YEJB63M4，F(xiàn)WF67-YEJB71M4，F(xiàn)WF67-YEJB80M4，F(xiàn)WF67-YEJB90M4，F(xiàn)WF67-YP100M4，F(xiàn)WF67-YP112M4，F(xiàn)WF67-YP132M4，F(xiàn)WF67-YP63M4，F(xiàn)WF67-YP71M4，F(xiàn)WF67-YP80M4，F(xiàn)WF67-YP90M4，F(xiàn)WF67-YPB100M4，F(xiàn)WF67-YPB112M4，F(xiàn)WF67-YPB132M4，F(xiàn)WF67-YPB63M4，F(xiàn)WF67-YPB71M4，F(xiàn)WF67-YPB80M4，F(xiàn)WF67-YPB90M4，F(xiàn)WF67-YPE100M4，F(xiàn)WF67-YPE112M4，F(xiàn)WF67-YPE132M4，F(xiàn)WF67-YPE63M4，F(xiàn)WF67-YPE71M4，F(xiàn)WF67-YPE80M4，F(xiàn)WF67-YPE90M4，F(xiàn)WF67-YS100M4，F(xiàn)WF67-YS112M4，F(xiàn)WF67-YS132M4，F(xiàn)WF67-YS63M4，F(xiàn)WF67-YS71M4，F(xiàn)WF67-YS80M4，F(xiàn)WF67-YS90M4，F(xiàn)WF67-YVB100M4，F(xiàn)WF67-YVB112M4，F(xiàn)WF67-YVB132M4，F(xiàn)WF67-YVB63M4，F(xiàn)WF67-YVB71M4，F(xiàn)WF67-YVB80M4，F(xiàn)WF67-YVB90M4，F(xiàn)WF67-YVP100M4，F(xiàn)WF67-YVP112M4，F(xiàn)WF67-YVP132M4，F(xiàn)WF67-YVP63M4，F(xiàn)WF67-YVP71M4，F(xiàn)WF67-YVP80M4，F(xiàn)WF67-YVP90M4，F(xiàn)WF67-YVPEJ100M4，F(xiàn)WF67-YVPEJ112M4，F(xiàn)WF67-YVPEJ132M4，F(xiàn)WF67-YVPEJ63M4，F(xiàn)WF67-YVPEJ71M4，F(xiàn)WF67-YVPEJ80M4，F(xiàn)WF67-YVPEJ90M4，JCFF67-Y0.18KW，JCFF67-Y0.25KW，JCFF67-Y0.37KW，JCFF67-Y0.55KW，JCFF67-Y0.75KW，JCFF67-Y1.1KW，JCFF67-Y1.5KW，JCFF67-Y100M4，JCFF67-Y112M4，JCFF67-Y132M4，JCFF67-Y2.2KW，JCFF67-Y3KW，JCFF67-Y4KW，JCFF67-Y5.5KW，JCFF67-Y63M4，JCFF67-Y71M4，JCFF67-Y80M4，JCFF67-Y90M4，JCFF67-YB100M4，JCFF67-YB112M4，JCFF67-YB132M4，JCFF67-YB63M4，JCFF67-YB71M4，JCFF67-YB80M4，JCFF67-YB90M4，JCFF67-YDP100M4，JCFF67-YDP112M4，JCFF67-YDP132M4，JCFF67-YDP63M4，JCFF67-YDP71M4，JCFF67-YDP80M4，JCFF67-YDP90M4，JCFF67-YE100M4，JCFF67-YE112M4，JCFF67-YE132M4，JCFF67-YE63M4，JCFF67-YE71M4，JCFF67-YE80M4，JCFF67-YE90M4，JCFF67-YEJ100M4，JCFF67-YEJ112M4，JCFF67-YEJ132M4，JCFF67-YEJ63M4，JCFF67-YEJ71M4，JCFF67-YEJ80M4，JCFF67-YEJ90M4，JCFF67-YEJB100M4，JCFF67-YEJB112M4，JCFF67-YEJB132M4，JCFF67-YEJB63M4，JCFF67-YEJB71M4，JCFF67-YEJB80M4，JCFF67-YEJB90M4，JCFF67-YP100M4，JCFF67-YP112M4，JCFF67-YP132M4，JCFF67-YP63M4，JCFF67-YP71M4，JCFF67-YP80M4，JCFF67-YP90M4，JCFF67-YPB100M4，JCFF67-YPB112M4，JCFF67-YPB132M4，JCFF67-YPB63M4，JCFF67-YPB71M4，JCFF67-YPB80M4，JCFF67-YPB90M4，JCFF67-YPE100M4，JCFF67-YPE112M4，JCFF67-YPE132M4，JCFF67-YPE63M4，JCFF67-YPE71M4，JCFF67-YPE80M4，JCFF67-YPE90M4，JCFF67-YS100M4，JCFF67-YS112M4，JCFF67-YS132M4，JCFF67-YS63M4，JCFF67-YS71M4，JCFF67-YS80M4，JCFF67-YS90M4，JCFF67-YVB100M4，JCFF67-YVB112M4，JCFF67-YVB132M4，JCFF67-YVB63M4，JCFF67-YVB71M4，JCFF67-YVB80M4，JCFF67-YVB90M4，JCFF67-YVP100M4，JCFF67-YVP112M4，JCFF67-YVP132M4，JCFF67-YVP63M4，JCFF67-YVP71M4，JCFF67-YVP80M4，JCFF67-YVP90M4，JCFF67-YVPEJ100M4，JCFF67-YVPEJ112M4，JCFF67-YVPEJ132M4，JCFF67-YVPEJ63M4，JCFF67-YVPEJ71M4，JCFF67-YVPEJ80M4，JCFF67-YVPEJ90M4，YQFF67-Y0.18KW，YQFF67-Y0.25KW，YQFF67-Y0.37KW，YQFF67-Y0.55KW，YQFF67-Y0.75KW，YQFF67-Y1.1KW，YQFF67-Y1.5KW，YQFF67-Y100M4，YQFF67-Y112M4，YQFF67-Y132M4，YQFF67-Y2.2KW，YQFF67-Y3KW，YQFF67-Y4KW，YQFF67-Y5.5KW，YQFF67-Y63M4，YQFF67-Y71M4，YQFF67-Y80M4，YQFF67-Y90M4，YQFF67-YB100M4，YQFF67-YB112M4，YQFF67-YB132M4，YQFF67-YB63M4，YQFF67-YB71M4，YQFF67-YB80M4，YQFF67-YB90M4，YQFF67-YDP100M4，YQFF67-YDP112M4，YQFF67-YDP132M4，YQFF67-YDP63M4，YQFF67-YDP71M4，YQFF67-YDP80M4，YQFF67-YDP90M4，YQFF67-YE100M4，YQFF67-YE112M4，YQFF67-YE132M4，YQFF67-YE63M4，YQFF67-YE71M4，YQFF67-YE80M4，YQFF67-YE90M4，YQFF67-YEJ100M4，YQFF67-YEJ112M4，YQFF67-YEJ132M4，YQFF67-YEJ63M4，YQFF67-YEJ71M4，YQFF67-YEJ80M4，YQFF67-YEJ90M4，YQFF67-YEJB100M4，YQFF67-YEJB112M4，YQFF67-YEJB132M4，YQFF67-YEJB63M4，YQFF67-YEJB71M4，YQFF67-YEJB80M4，YQFF67-YEJB90M4，YQFF67-YP100M4，YQFF67-YP112M4，YQFF67-YP132M4，YQFF67-YP63M4，YQFF67-YP71M4，YQFF67-YP80M4，YQFF67-YP90M4，YQFF67-YPB100M4，YQFF67-YPB112M4，YQFF67-YPB132M4，YQFF67-YPB63M4，YQFF67-YPB71M4，YQFF67-YPB80M4，YQFF67-YPB90M4，YQFF67-YPE100M4，YQFF67-YPE112M4，YQFF67-YPE132M4，YQFF67-YPE63M4，YQFF67-YPE71M4，YQFF67-YPE80M4，YQFF67-YPE90M4，YQFF67-YS100M4，YQFF67-YS112M4，YQFF67-YS132M4，YQFF67-YS63M4，YQFF67-YS71M4，YQFF67-YS80M4，YQFF67-YS90M4，YQFF67-YVB100M4，YQFF67-YVB112M4，YQFF67-YVB132M4，YQFF67-YVB63M4，YQFF67-YVB71M4，YQFF67-YVB80M4，YQFF67-YVB90M4，YQFF67-YVP100M4，YQFF67-YVP112M4，YQFF67-YVP132M4，YQFF67-YVP63M4，YQFF67-YVP71M4，YQFF67-YVP80M4，YQFF67-YVP90M4，YQFF67-YVPEJ100M4，YQFF67-YVPEJ112M4，YQFF67-YVPEJ132M4，YQFF67-YVPEJ63M4，YQFF67-YVPEJ71M4，YQFF67-YVPEJ80M4，YQFF67-YVPEJ90M4，F(xiàn)F69-Y0.18KW，F(xiàn)F69-Y0.25KW，F(xiàn)F69-Y0.37KW，F(xiàn)F69-Y0.55KW，F(xiàn)F69-Y0.75KW，F(xiàn)F69-Y1.1KW，F(xiàn)F69-Y1.5KW，F(xiàn)F69-Y100M4，F(xiàn)F69-Y112M4，F(xiàn)F69-Y132M4，F(xiàn)F69-Y2.2KW，F(xiàn)F69-Y3KW，F(xiàn)F69-Y4KW，F(xiàn)F69-Y5.5KW，F(xiàn)F69-Y63M4，F(xiàn)F69-Y71M4，F(xiàn)F69-Y80M4，F(xiàn)F69-Y90M4，F(xiàn)F69-YB100M4，F(xiàn)F69-YB112M4，F(xiàn)F69-YB132M4，F(xiàn)F69-YB63M4，F(xiàn)F69-YB71M4，F(xiàn)F69-YB80M4，F(xiàn)F69-YB90M4，F(xiàn)F69-YDP100M4，F(xiàn)F69-YDP112M4，F(xiàn)F69-YDP132M4，F(xiàn)F69-YDP63M4，F(xiàn)F69-YDP71M4，F(xiàn)F69-YDP80M4，F(xiàn)F69-YDP90M4，F(xiàn)F69-YE100M4，F(xiàn)F69-YE112M4，F(xiàn)F69-YE132M4，F(xiàn)F69-YE63M4，F(xiàn)F69-YE71M4，F(xiàn)F69-YE80M4，F(xiàn)F69-YE90M4，F(xiàn)F69-YEJ100M4，F(xiàn)F69-YEJ112M4，F(xiàn)F69-YEJ132M4，F(xiàn)F69-YEJ63M4，F(xiàn)F69-YEJ71M4，F(xiàn)F69-YEJ80M4，F(xiàn)F69-YEJ90M4，F(xiàn)F69-YEJB100M4，F(xiàn)F69-YEJB112M4，F(xiàn)F69-YEJB132M4，F(xiàn)F69-YEJB63M4，F(xiàn)F69-YEJB71M4，F(xiàn)F69-YEJB80M4，F(xiàn)F69-YEJB90M4，F(xiàn)F69-YP100M4，F(xiàn)F69-YP112M4，F(xiàn)F69-YP132M4，F(xiàn)F69-YP63M4，F(xiàn)F69-YP71M4，F(xiàn)F69-YP80M4，F(xiàn)F69-YP90M4，F(xiàn)F69-YPB100M4，F(xiàn)F69-YPB112M4，F(xiàn)F69-YPB132M4，F(xiàn)F69-YPB63M4，F(xiàn)F69-YPB71M4，F(xiàn)F69-YPB80M4，F(xiàn)F69-YPB90M4，F(xiàn)F69-YPE100M4，F(xiàn)F69-YPE112M4，F(xiàn)F69-YPE132M4，F(xiàn)F69-YPE63M4，F(xiàn)F69-YPE71M4，F(xiàn)F69-YPE80M4，F(xiàn)F69-YPE90M4，F(xiàn)F69-YS100M4，F(xiàn)F69-YS112M4，F(xiàn)F69-YS132M4，F(xiàn)F69-YS63M4，F(xiàn)F69-YS71M4，F(xiàn)F69-YS80M4，F(xiàn)F69-YS90M4，F(xiàn)F69-YVB100M4，F(xiàn)F69-YVB112M4，F(xiàn)F69-YVB132M4，F(xiàn)F69-YVB63M4，F(xiàn)F69-YVB71M4，F(xiàn)F69-YVB80M4，F(xiàn)F69-YVB90M4，F(xiàn)F69-YVP100M4，F(xiàn)F69-YVP112M4，F(xiàn)F69-YVP132M4，F(xiàn)F69-YVP63M4，F(xiàn)F69-YVP71M4，F(xiàn)F69-YVP80M4，F(xiàn)F69-YVP90M4，F(xiàn)F69-YVPEJ100M4，F(xiàn)F69-YVPEJ112M4，F(xiàn)F69-YVPEJ132M4，F(xiàn)F69-YVPEJ63M4，F(xiàn)F69-YVPEJ71M4，F(xiàn)F69-YVPEJ80M4，F(xiàn)F69-YVPEJ90M4，F(xiàn)F67SF80，F(xiàn)F67SF90，F(xiàn)F67SF100，F(xiàn)F67SF112，F(xiàn)F67SF115，F(xiàn)F67SF140，F(xiàn)F67SF160，F(xiàn)F67SF190。
